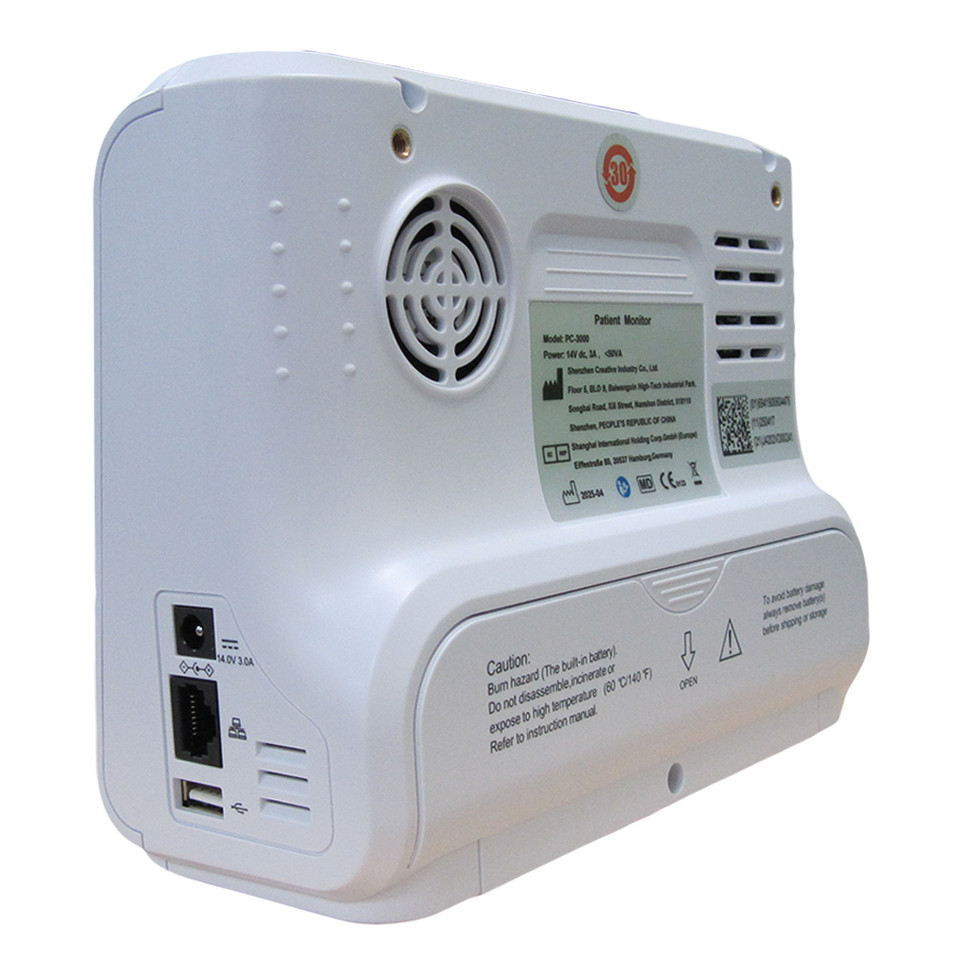

Creative PC-3000 Patient Vital Signs Monitor (SpO2 (Creative), PR, Resp Rate, NIBP, ECG, Temp)
Advanced Vital Signs Monitoring for Clinical & Home Use
Ensure accurate and reliable patient monitoring with the Creative PC-3000 Multi-Parameter Monitor, a compact and portable vital signs monitor designed for hospitals, clinics, and home healthcare environments.
This high-performance device offers real-time monitoring of ECG, SpO2, NIBP, pulse rate, respiration rate, and temperature, making it an essential tool for medical professionals and caregivers.
Key Product Features:
- 7” High-Resolution Colour TFT Display (800 x 480 pixels)
- User-Friendly Interface with ergonomic design for easy operation
- Multiple Display Modes: Choose between waveform view or extra-large numerics
- Adult & Infant Measurement Modes for versatile patient monitoring
- Customisable Visual and Audible Alarms for enhanced safety
- Data Storage & Screen Trending for continuous monitoring
- Memory Capacity:
- Up to 2000 ARR Events
- Up to 12000 NIBP Readings
- Optional ECG Waveform Storage:
- Up to 60 hours
- Includes arrhythmia and ST segment analysis
- Long-Term Data Trends:
- Up to 1000 hours for all parameters
- Includes graphic and list view
- Compact & Lightweight Design – weighs only 3kg
- Defibrillator Interference Protection for safe use in emergency settings
- 2-Year Manufacturer Warranty for peace of mind
ll PC-3000 monitors are supplied with:
- Adult SpO2 Sensor
- Adult NIBP Cuff
- Temperature Interface Cable
- Instruction Manual
- Power Adaptor
- USB Data Cable
Specifications
NIBP
- Standards: Creative NIBP meets ANSI/AAMI SP10 Standard
- Technique: Oscillometric
- Cuff Pressure Range: 0mmHg - 300mmHg
- Pressure Precision: ±3mmHg
- Cuff Inflation Time: <10 seconds (typical adult cuff)
- Overpressure Protection:
- Adult / Paediatric: 300mmHg
- Neonate: 140mmHg
- BP Measuring Range: Systolic pressure
- Adult: 40mmHg - 255mmHg
- Paediatric: 40mmHg - 200mmHg
- Mean Arterial Pressure:
- Adult: 20mmHg - 215mmHg
- Paediatric: 20mmHg - 165mmHg
- Diastolic Pressure:
- Adult: 10mmHg - 195mmHg
- Paediatric: 20mmHg - 165mmHg
- BP Measuring Accuracy: Maximal mean difference ±5mmHg
- Maximal Standard Deviation: 8mmHg
- Measurement Mode:
- Adjustable Inflation Pressure
- Manual, Auto, STAT
Temperature
- Technology: YSI 400 Compatible
- Measuring Range: 25.0°C - 45.0°C
- Measuring Accuracy: ±0.2°C
- Responding Time: <45s
SpO2
- Transducer / Technology:
- Dual-wave length LED
- Creative™ LFC™ Patented Technology
- SpO2 Measuring Range: 35% - 100% (Adult and Paediatrics)
- Low Perfusion Performance: 0.4% - 5%
- SpO2 Measuring Accuracy: ARMS (ISO 9919) less than 2% for SpO2 range from 70% - 100%
- Low Perfusion Performance: 0.4%
- PR Measuring Range: 30bpm - 240bpm
PR Measuring Accuracy: ±2bpm or ±2% whichever is greater
ECG (Optional)
- Input Dynamic Range: ±0.4mVp - ±5mVp
- HR Measuring Range: 15bpm - 350bpm
- HR Measuring Accuracy: ±1% or ±2bpm whichever is greater
- HR Alarm Delay Time: <10s
- Sensitivity Selection:
- x1/2 x1
- x2m tolerance <10%
- Sweeping Speed:
- 12.5mm/s, 25mm/s
- 50mm/s, tolerance <=10%
- ECG Noise Level: <30μVp-p
- ECG Input Loop Current: <0.1μA
- Input Impedance: >5MΩ
- Common Mode Rejection Ratio: >89dB
- Time Constant:
- >0.3s (Monitoring Mode)
- >3.2s (Diagnostics Mode)
- Frequency Response:
- 0.5Hz - 40Hz (Monitoring Mode)
- 0.05Hz - 75Hz (Diagnostics Mode)
Respiration Rate
- RR Measuring Range: 0rpm - 120rpm (Respiration per minute)
- RR Measuring Accuracy: ±5% or ±2rpm (whichever is greater)
Other
- Power Supply: 100-240VAC, 50/60Hz
- Rechargeable Li-Ion Battery: 14.8V 2200mAh
- Display: 7” TFT colour LCD with 800 x 480 px
- Alarms: User adjustable audible and visual alarms
- Communication: Serial / Ethernet
- Weight: 2.6kg
- Dimensions: 20cm x 8cm (largest point) x 15.5cm
Why Choose the Creative PC-3000?
Whether you're equipping a hospital ward, a GP surgery, or a home care setup, the Creative PC-3000 offers unmatched versatility, precision, and ease of use. With CE certification and a 2-year warranty, this monitor is a trusted solution for continuous patient monitoring.
